Marchcompact
These compact scopes are able to encompass the performance of two or three zoom scopes in one. These scopes provide the highest magnification ratio in any rifle scope.

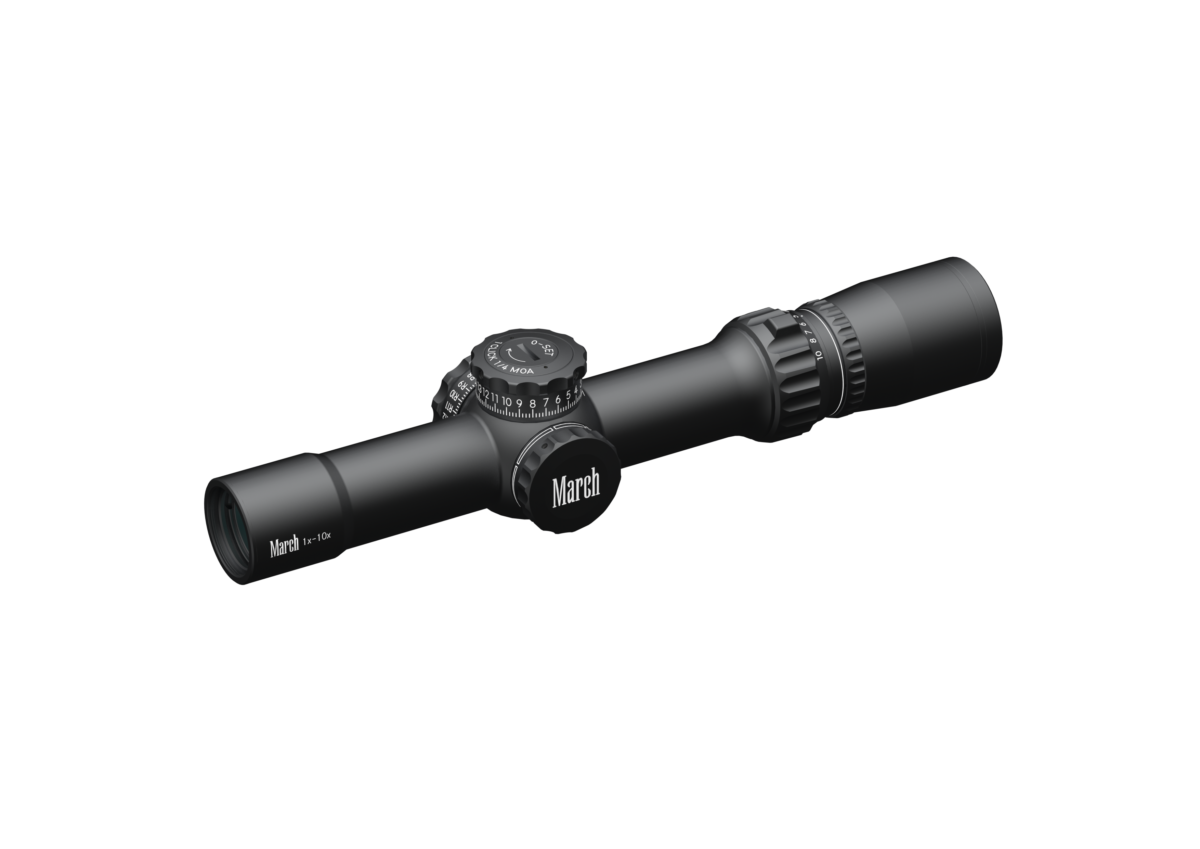

D10V24TM

Tactical Model

Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.

The most compact in March SFP reticle scopes and it covers a wide range of tactical and hunting situation.

Dials

D10V24TM

MOA Type

One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 200MOA.

1/4MOA Adj.dials with 0-Set

Reticles

Technical Data

Low High
Magnification 1x 10x
Effective Lens Diameter 24mm
Body Tube Diameter 30mm
Exit Pupil -- 2.4mm
(0.09inch)
Field of View (real) degree 20.0° 2.0°
ft/100yd 105.8ft 10.5ft
m/100m 35.27m 3.53m
Eye Relief 86-98mm
(3.39-3.86inch)
86-96mm
(3.39-3.78inch)
1 Click Adjustment 1/4MOA
Elevation Travel 200MOA
Windage Travel 200MOA
Focus Distance 10yd - infinity
Reticle MTR-1
MTR-2
MTR-3
MTR-4
In the box Flip Caps (Objective and Eyepiece)
Lens Cloth
Scope Size A 264mm (10.39inch)
size B 135mm (5.31inch)
C 33mm (1.3inch)
D 41mm (1.61inch)
E 35mm (1.38inch)
F 94mm (3.7inch)
G 49mm (1.93inch)
H 48mm (1.89inch)
Weight 530g (18.7oz)
