Marchcompact
These compact scopes are able to encompass the performance of two or three zoom scopes in one. These scopes provide the highest magnification ratio in any rifle scope.

D25V52TML

Tactical Model (Non illuminated)

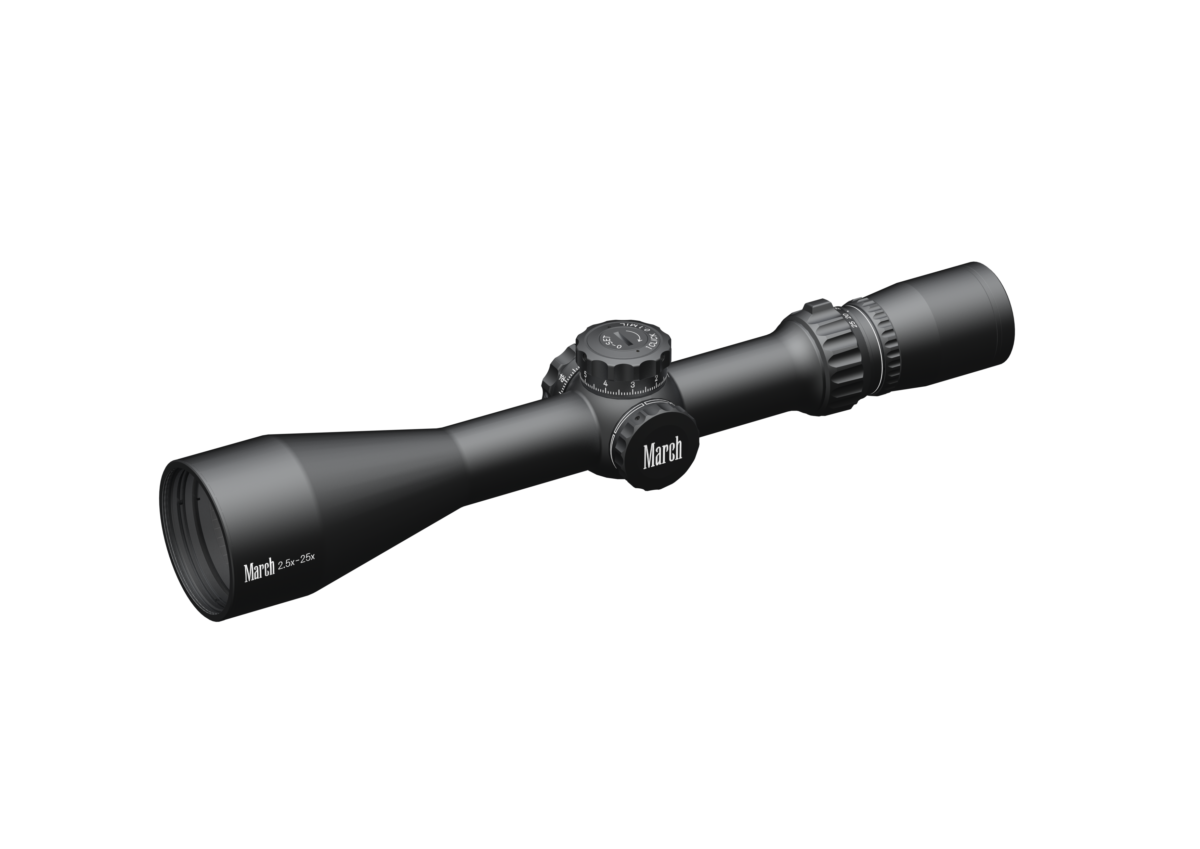

March Compact 2.5-25x52
10x zoom ratio scope covering extended wide range of tactical and hunting situation.
・10X Zoom in SFP
・ED Glass
・30mm diameter body
・52mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

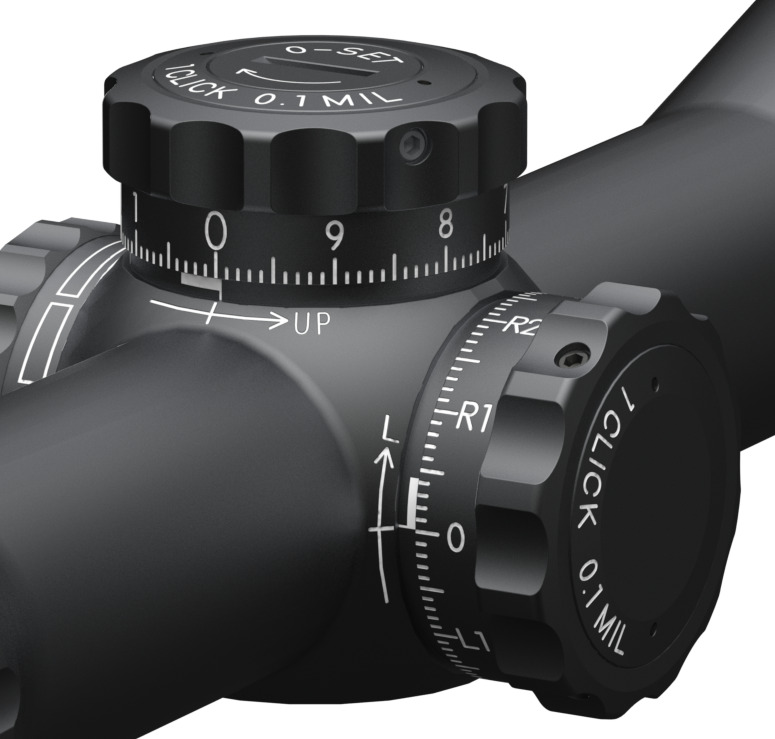

Dials

D25V52TML

MIL Type

One turn of both adjustment dials is 10MIL and one click is 0.1MIL.
Elevation axis has a total adjustment range of 34MIL.
Windage axis has a total adjustment range of 17MIL.

0.1MIL Adj.dials with 0-Set

Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.

Reticles

Technical Data

Low High
Magnification 2.5x 25x
Effective Lens Diameter 52mm
Body Tube Diameter 30mm
Exit Pupil -- 2.08mm
(0.08inch)
Field of View (real) degree 8.0° 0.8°
ft/100yd 42.0ft 4.2ft
m/100m 13.99m 1.40m
Eye Relief 85-100mm
(3.35-3.94inch)
89-96mm
(3.5-3.78inch)
1 Click Adjustment 0.1MIL
Elevation Travel 34MIL
Windage Travel 17MIL
Focus Distance 10yd - infinity
Reticle MML
In the box Flip Caps (Objective and Eyepiece)
Sunshade
Lens Cloth
Fast Lever
Hex wrench
MD disk

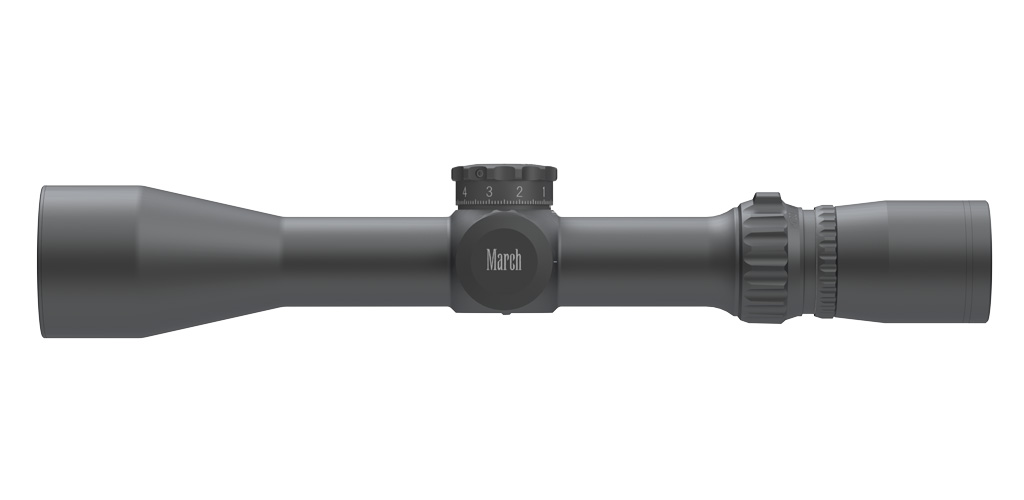

Scope Size A 338mm (13.31inch)
size B 139mm (5.47inch)
C 60mm (2.36inch)
D 41mm (1.61inch)
E 105mm (4.13inch)
F 94mm (3.7inch)
G 53mm (2.09inch)
H 48mm (1.89inch)
Weight 655g (23.10oz)
