D50V56TM
Tactical Model (Non illuminated)

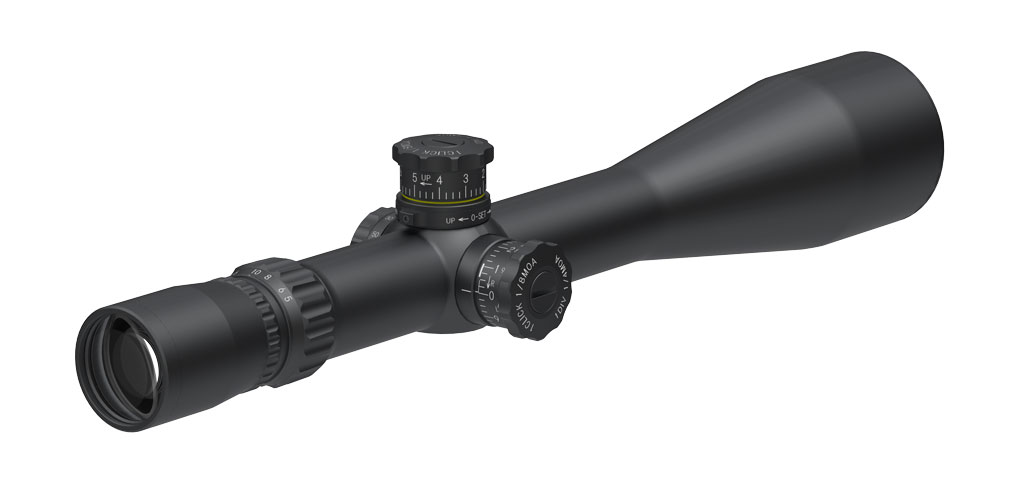

March-X 5-50x56mm
The 56mm objective and the 34 mm tube offer high resolution with excellent reliability and ruggedness.
・10X Zoom in SFP
・ED Glass
・34mm diameter body
・56mm objective lens
・Focus from 10 yard to infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
Dials
-
-
1/8 MOA Type
One turn of both adjustment dials is 10MOA and one click is 1/8MOA.
Elevation has a total adjustment range of 60MOA.
Windage has a total adjustment range of 40MOA.
1/8MOA Adj.dials with 0-Set
Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.
Reticles
-
MTR-1
at 10x
0.08 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
These hash marks are placed till 40 MOA at relative position (up and down, left and right).
-
MTR-2
at 10x
0.08 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20 MOA to 40 MOA hash marks are placed in 10 MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
0.25MOA floating center dot.
-
MTR-3
at 10x
0.16 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
These hash marks are placed till 40 MOA at relative position (up and down, left and right).
From 40 MOA onwards thick 2MOA posts.
-
MTR-4
at 10x
0.16 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20MOA to 40MOA hash marks are placed in 10MOA increments.
Thick 2MOA posts are placed from 40 MOA onwards on right and left sides.
Thick 2MOA posts are placed from 20 MOA downwards.
0.5 MOA floating center dot inside the 4 MOA center circle.
-
MTR-FT
at10x
MTR-FT is designed for a field target competition.
Vertical and horizontal hashmarks correlate to the aim point in field target competition.
-
MTR-5
at 10x
0.2 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20MOA to 40MOA hash marks are placed in 10MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
0.5 MOA floating center dot. Also available in illuminated model.
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 5x | 50x | |
| Effective Lens Diameter | 56mm | ||
| Body Tube Diameter | 34mm | ||
| Exit Pupil | -- |
1.12mm (0.04inch) |
|
| Field of View (real) | degree | 4.0° | 0.4° |
| ft/100yd | 21.0ft | 2.1ft | |
| m/100m | 6.98m | 0.70m | |
| Eye Relief | 96-101mm (3.15-4.21inch) |
92-98mm (3.62-3.86inch) |
|
| 1 Click Adjustment | 1/8MOA | ||
| Elevation Travel | 60MOA | ||
| Windage Travel | 40MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | MTR-1 MTR-2 MTR-3 MTR-4 MTR-5 MTR-FT MTR-RTM |
||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth MD disk Fast Lever Hex wrench |
||
| Scope Size | A | 400mm (15.75inch) | |
|
B | 166mm (6.54inch) | |
| C | 64mm (2.52inch) | ||
| D | 41mm (1.61inch) | ||
| E | 144mm (5.67inch) | ||
| F | 90mm (3.54inch) | ||
| G | 79mm (3.11inch) | ||
| H | 51mm (2.01inch) | ||
| Weight | 830g (29.28oz) | ||
