D24V42FMA (MOA, Tactical)
Tactical Model (Non illuminated)

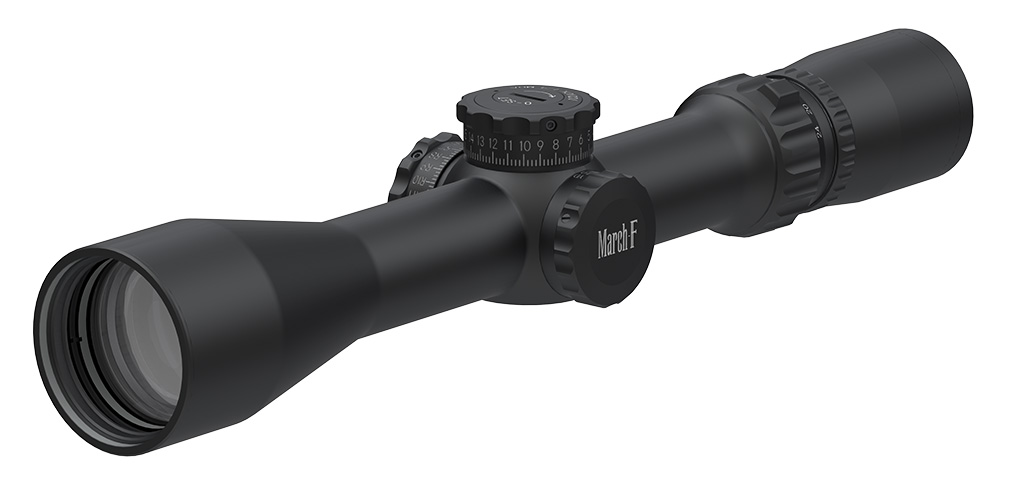

March-F 3-24x42mm
Compact and lightweight scope perfect for hunting and general shooting.
・8X Zoom in FFP, MOA
・ED Glass
・30mm diameter body
・42mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.
Dials
-
1/4 MOA Type
One turn of both adjustment dials is 25MOA and one click value is 1/4MOA.
Reticle: FMA-2
1/4MOA Adj.dials with 0-Set
Technical Data
Low | High | ||
---|---|---|---|
Magnification | 3x | 24x | |
Effective Lens Diameter | 42mm | ||
Body Tube Diameter | 30mm | ||
Exit Pupil | -- |
1.75mm (0.07inch) |
|
Field of View (real) | degree | 6.67° | 0.83° |
ft/100yd | 35.0ft | 4.3ft | |
m/100m | 11.66m | 1.45m | |
Eye Relief | 85-100mm (3.35-3.94inch) |
89-96mm (3.5-3.78inch) |
|
1 Click Adjustment | 1/4MOA | ||
Elevation Travel | 100MOA | ||
Windage Travel | 100MOA | ||
Focus Distance | 10yd - infinity | ||
Reticle | FMA-2 | ||
In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk |
||
Scope Size | A | 312mm (12.28inch) | |
B | 139mm (5.47inch) | ||
C | 51mm (2.01inch) | ||
D | 41mm (1.61inch) | ||
E | 81mm (3.19inch) | ||
F | 92mm (3.62inch) | ||
G | 53mm (2.09inch) | ||
H | 48mm (1.89inch) | ||
Weight | 590g (20.81oz) |
