D60V56GFIMA (MOA, Tactical, Illumi)

The March GENESIS scope is no ordinary rifle scope. Traditional rifle scopes are designed and constructed with an internal assembly which moves the image of the reticle and field of view as the turrets are adjusted. For long range shooting, the FOV is shifted far enough off the centerline of the lenses that optical resolution is reduced. Unfortunately, it is at long ranges where the shooter needs the best clarity. Long range shooters often use MOA inclined rail below their scopes, not just to provide more elevation adjustment but to keep the reticle closer to the optical centerline of the lenses when sighted in at long range. In the GENESIS scope, the reticle remains fixed, so it is always optically centered within the internal lens assembly of the scope, thus maximizing optical clarity in all conditions.

March GENESIS (FFP)

4x-40x52mm FFP (High Master Wide Angle)
D40V52GFIML10 (MIL, Tactical, Illumi, 0.1MIL adj)
D40V52GFIML (MIL, Tactical, Illumi, 0.05MIL adj)
D40V52GFIMA (MOA, Tactical, Illumi)
6x-60x56mm FFP (High Master Wide Angle)
D60V56GFIML10 (MIL, Tactical, Illumi, 0.1MIL adj)
D60V56GFML10 (MIL, Tactical, 0.1MIL adj)
D60V56GFIML (MIL, Tactical, Illumi, 0.05MIL adj)
D60V56GFML (MIL, Tactical, 0.05MIL adj)
D60V56GFIMA (MOA, Tactical, Illumi)
D60V56GFMA (MOA, Tactical)

Tactical Model (Illuminated)

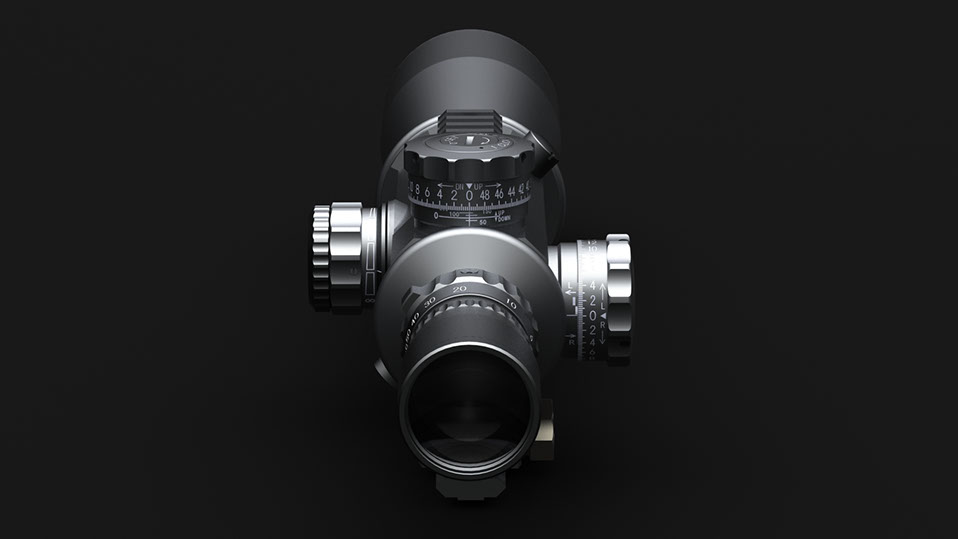

March "GENESIS" 6x-60x56mm with 400 MOA of total elevation travel without utilizing any external accessories.
Because of the supreme lens systems Genesis scope assembles and also because of the unique design of Genesis scope (the scope itself inclines) allowing the shooter to always see through the central part of the lens, it offers utmost clarity, definition, and minimal chromatic aberration even when extreme elevation is used on 400 MOA. Genesis March scopes have the highest image quality among all our scopes, not to mention the largest elevation travel amount. This scope can be used from 20 meters up to 3 miles (4827m).

・10X Zoom in FFP, MOA
・56mm objective lens
・Wide Field of View : 24.96 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 20m - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・6 level illumination module
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

*Pictures are all in illuminated models

GENESIS employs "New High Master Lens System" and "Temperature Anti-Drift Lens System"
"New High Master Lens System"
The High Master Lens System has 2 Super ED lens elements within its new lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with greater contrast, while still having a strong scope.

"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes in environmental temperature by altering the refractive index of the lenses. This new lens material has been adopted for the new High Master optics to create a more stable lens system that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.

Dials

1/4 MOA Type 400 MOA of total elevation travel with Zero-set feature (350 MOA up, 50 MOA down) 150 MOA of total windage travel (75 MOA left and 75 MOA right) 50 MOA per turn on each turret. 1/4 MOA clicks

Reticles

FMA-MT

Thickness of the main line:0.07MOA. Tapered line: starts with 0.25MOA and widens at 2°.

× CLOSE
FMA-3

New competition oriented First Focal Plane reticle is designed for precise holdover without obscuring the sight picture. This image is at 42x but will go up to 60x.

× CLOSE
FMA-TR1

New competition oriented First Focal Plane reticle is designed for precise holdover without obscuring the sight picture. This image is at 42x but will go up to 60x.

× CLOSE

Technical Data

		Low	High
Magnification		6x	60x
Effective Lens Diameter		56mm
Body Tube Diameter		--
Exit Pupil		3.5mm (0.13inch)	0.93mm (0.04inch)
Field of View (real)	degree	4.16°	0.416°
	ft/100yd	21.8ft	2.2ft
	m/100m	7.26m	0.73m
Eye Relief		67-82mm (2.64-3.23inch)	63-82.5mm (2.48-3.25inch)
1 Click Adjustment		1/4MOA
Elevation Travel		400MOA
Windage Travel		150MOA
Focus Distance		20m - infinity
Reticle		FMA-MT FMA-3 FMA-TR1
In the box		Flip Caps (Objective and Eyepiece) MD disk Sunshade Lens Cloth Fast lever Eyepiece rubber Mount Mount spacer Hex wrench
Scope Size	A	400mm (15.75inch)
	B	68mm (2.68inch)
	C	64mm (2.52inch)
	D	41mm (1.61inch)
	E	132mm (5.20inch)
	F	95mm (3.54inch)
	G	173mm (6.81inch)
	H	2.50°
Weight		1,480g (52.21oz)
