March-X (SFP, 34mm tube)
- 5x-50x56mm SFP
- D50V56TI (MOA, Tactical, Illumi)
- D50V56T (MOA, Tactical)
- 10x-60x56mm SFP (High Master)
- D60HV56TI (MOA, Tactical, Illumi)
- D60HV56TM (MOA, Tactical)
- D60HV56T (MOA, Tactical)
- D60HV56LM (MOA, Normal)
- D60HV56L (MOA, Normal)
- 8x-80x56mm SFP
- D80HV56WTIX-GR (High Master, MOA, Tactical, Illumi, Shuriken lock, Grey)
- D80HV56WTIMLX-GR (High Master, MIL, Tactical, Illumi, Shuriken lock, Grey)
- D80V56TI (MOA, Tactical, Illumi)
- D80V56TM (MOA, Tactical)
- D80V56T (MOA, Tactical)
- D80V56STI (MOA, Tactical, Illumi, Silver)
- D80V56STM (MOA, Tactical, Silver)
- D80V56ST (MOA, Tactical, Silver)

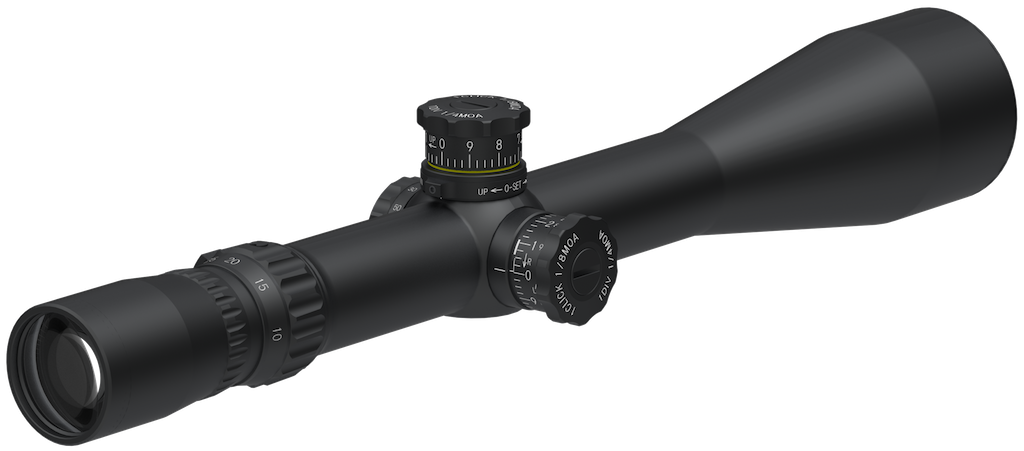

D60HV56TM (MOA, Tactical)
Tactical Model (Non illuminated)
March-X "High Master" 10x-60x56mm
The High Master has Super ED lens which offers utmost clarity and natural color right to the edge of the image. The 56mm objective and the 34 mm tube offer high resolution with excellent reliability and ruggedness. The March-X High Master 10x-60x56mm is suitable for short-range competitions such as Field target and also long-range competitions such as F-class. The focus range adjustment is from 10 yards to infinity, offering reliable adjustment for any situation.
・6X Zoom in SFP, MOA
・34mm diameter body
・56mm objective lens
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating
10x-60x56mm employs "High Master Lens System" and "Temperature Anti-Drift Lens System"
"High Master Lens System"
The High Master Lens System has 2 Super ED lens elements within its lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with greater contrast, while still having a strong scope.
"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes in environmental temperature by altering the refractive index of the lenses. This new lens material has been adopted for the new High Master optics to create a more stable lens system that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.
We offer special FT (Field target) package for this model. This package is available to order with March Scopes Europe (info@marchscopes.co.uk). * All accessories that comes with the FT package can be purchased separately at your local dealer but 10-60×56 High Master scope with engraving is only available through March Scopes Europe or other European dealers.
– Special engraving “FT edition” on the 10-60×56 High Master Scope
– Large dial especially made for this FT package. You can cover the large dial on the existing elevation turret and
write your own elevation adjustments.
– Middle wheel : This will assist making quick and fine adjustments easier with the focus knob.
– Large wheel : Shooting at very close ranges often requires very fine adjustment of the focus dial. March has
produced a Large Wheel to fit over the Middle Focus wheel to enhance the dial’s ability to focus clearly. This is
a great addition to Air Rifle Field Target and other shooting disciplines requiring accuracy.
– Reticle for Field Target : You can also choose a reticle specially designed for Field Target "MTR-FT".
Dials
-
1/8 MOA Type
1 Click Adjustment : 1/8 MOA (0.13inch @100yds)
10 MOA turret revolution (10.47inch @100yds)
0-Set on Elevation turret
Technical Data
Low | High | ||
---|---|---|---|
Magnification | 10x | 60x | |
Effective Lens Diameter | 56mm | ||
Body Tube Diameter | 34mm | ||
Exit Pupil | -- |
0.94mm (0.04inch) |
|
Field of View (real) | degree | 1.9° | 0.32° |
ft/100yd | 10.2ft | 1.7ft | |
m/100m | 3.40m | 0.57m | |
Eye Relief | 80-107mm (3.15-4.21inch) |
92-102mm (3.62-4.02inch) |
|
1 Click Adjustment | 1/8 MOA | ||
Elevation Travel | 60MOA | ||
Windage Travel | 40MOA | ||
Focus Distance | 10yd - infinity | ||
Reticle | MTR-1 MTR-2 MTR-3 MTR-4 MTR-5 MTR-FT MTR-RTM |
||
In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth MD disk Fast Lever Hex wrench |
||
Scope Size | A | 413mm (16.26inch) | |
B | 180mm (7.09inch) | ||
C | 64mm (2.52inch) | ||
D | 41mm (1.61inch) | ||
E | 134mm (5.28inch) | ||
F | 99mm (3.9inch) | ||
G | 81mm (3.19inch) | ||
H | 63mm (2.48inch) | ||
Weight | 915g (32.28oz) |
