D80V56TI (MOA, Tactical, Illumi)

The most powerful zoom riflescope series in the world, the March-X Series, has a 10x magnification ratio zoom range capable of focusing from 10 yards to infinity. With the capability to set any position as the zero point in elevation, the shooter will never lose the starting calibration. Based on the 34mm diameter body and has the 56mm objective lens. As with all high power March scopes, the March-X 5x-50x56mm and 8x-80x56mm incorporate high quality ED lenses to provide superior image resolution. In recent years, these scopes have become very popular among the Field Target air rifle competition shooters. The Field Target competition requires a high degree of ranging accuracy. High power magnification and clear imaging are necessary for the Field Target competitors to measuring distance accurately. Expand your world more than ever before.

March-X (SFP, 34mm tube)

5x-50x56mm SFP
D50V56TI (MOA, Tactical, Illumi)
D50V56T (MOA, Tactical)
10x-60x56mm SFP (High Master)
D60HV56TI (MOA, Tactical, Illumi)
D60HV56TM (MOA, Tactical)
D60HV56T (MOA, Tactical)
D60HV56LM (MOA, Normal)
D60HV56L (MOA, Normal)
8x-80x56mm SFP
D80HV56WTIX-GR (High Master, MOA, Tactical, Illumi, Shuriken lock, Grey)
D80HV56WTIMLX-GR (High Master, MIL, Tactical, Illumi, Shuriken lock, Grey)
D80V56TI (MOA, Tactical, Illumi)
D80V56TM (MOA, Tactical)
D80V56T (MOA, Tactical)
D80V56STI (MOA, Tactical, Illumi, Silver)
D80V56STM (MOA, Tactical, Silver)
D80V56ST (MOA, Tactical, Silver)

Tactical Model (Illuminated)

March-X 8-80x56mm
The 56mm objective and the 34 mm tube offer high resolution with excellent reliability and ruggedness.

・10X Zoom in SFP, MOA
・Highest magnification in the world as of today
・ED Glass
・34mm diameter body
・56mm objective lens
・Focus from 10 yard to infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

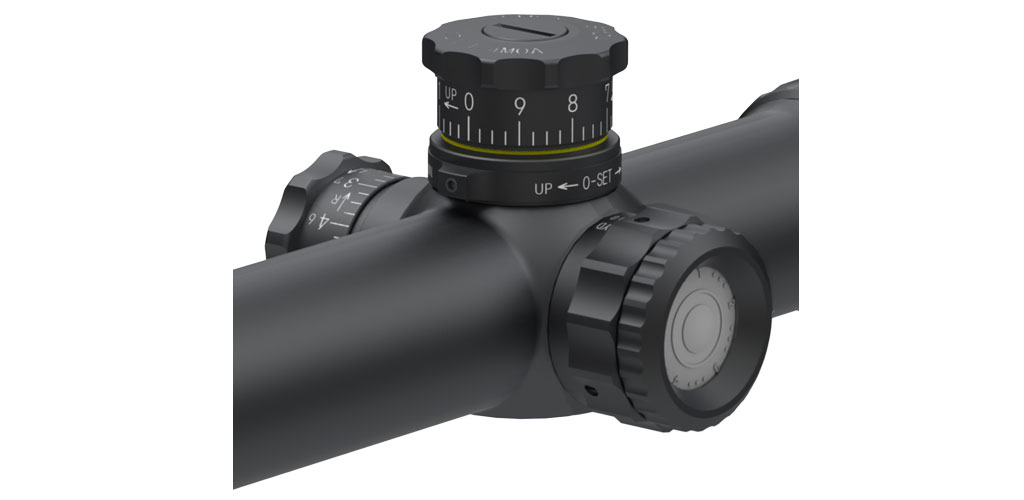

Dials

MOA Type 1/8MOA Adj.dials with 0-Set One turn of both adjustment dials is 10MOA and one click is 1/8MOA. Elevation has a total adjustment range of 60MOA. Windage has a total adjustment range of 40MOA. Oversized dials for elevation, windage, and side focus for easy adjustment. The elevation dial has a 0-set function.

Reticles

MTR-1

at 10x
0.08 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
These hash marks are placed till 40 MOA at relative position (up and down, left and right).

× CLOSE
MTR-2

at 10x
0.08 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20 MOA to 40 MOA hash marks are placed in 10 MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
0.25MOA floating center dot.

× CLOSE
MTR-3

at 10x
0.16 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
These hash marks are placed till 40 MOA at relative position (up and down, left and right).
From 40 MOA onwards thick 2MOA posts.

× CLOSE
MTR-4

at 10x
0.16 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20MOA to 40MOA hash marks are placed in 10MOA increments.
Thick 2MOA posts are placed from 40 MOA onwards on right and left sides.
Thick 2MOA posts are placed from 20 MOA downwards.
0.5 MOA floating center dot inside the 4 MOA center circle.

× CLOSE
MTR-5

at 10x
0.2 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20MOA to 40MOA hash marks are placed in 10MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
Red illuminated 0.5 MOA floating center dot.
(Only the dot is illuminated red and nothing else would be illuminated )

× CLOSE
MTR-FT

at10x
MTR-FT is designed for a field target competition.
Vertical and horizontal hashmarks correlate to the aim point in field target competition.

× CLOSE

Technical Data

		Low	High
Magnification		8x	80x
Effective Lens Diameter		56mm
Body Tube Diameter		34mm
Exit Pupil		--	0.7mm (0.03inch)
Field of View (real)	degree	2.5°	0.25°
	ft/100yd	13.2ft	1.3ft
	m/100m	4.36m	0.44m
Eye Relief		89-95mm (3.5-3.74inch)	83-97mm (3.27-3.82inch)
1 Click Adjustment		1/8MOA
Elevation Travel		60MOA
Windage Travel		40MOA
Focus Distance		10yd - infinity
Reticle		MTR-1 MTR-2 MTR-3 MTR-4 MTR-5 MTR-FT MTR-RTM
In the box		Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth MD disk Fast Lever Hex wrench
Scope Size	A	409mm (16.1inch)
	B	175mm (6.89inch)
	C	64mm (2.52inch)
	D	41mm (1.61inch)
	E	144mm (5.67inch)
	F	90mm (3.54inch)
	G	79mm (3.11inch)
	H	60mm (2.36inch)
Weight		865g (30.51oz)
