March Compact (SFP, 30mm tube)
- 1x-4x24mm SFP
- D4V24IML (Mil, Normal, Illumi)
- 1x-4.5x24mm SFP
- D4.5V24TM (MOA, Tactical)
- 1x-10x24mm SFP
- D10V24TI (MOA, Tactical, Illumi)
- D10V24T (MOA, Tactical)
- D10V24I (MOA, Normal, Illumi)
- D10V24 (MOA, Normal)
- D10V24TIML (Mil, Tactical, Illumi)
- D10V24IML (MIL, Normal, Illumi)
- 1.5x-15x42mm SFP
- D15V42TI (MOA, Tactical, Illumi)
- D15V42I (MOA, Normal, Illumi)
- D15V42TIML (MIL, Tactical, Illumi)
- D15V42IML (MIL, Normal, Illumi)
- 2.5x-25x42mm SFP
- D25V42TI (MOA, Tactical, Illumi)
- D25V42T (MOA, Tactical)
- D25V42I (MOA, Normal, Illumi)
- D25V42 (MOA, Normal)
- D25V42TIML (MIL, Tactical, Illumi)
- D25V42IML (MIL, Normal, Illumi)
- 2.5x-25x52mm SFP
- D25V52TI (MOA, Tactical, Illumi)
- D25V52T (MOA, Tactical)
- D25V52I (MOA, Normal, Illumi)
- D25V52TIML (MIL, Tactical, Illumi)
- D25V52IML (MIL, Normal, Illumi)

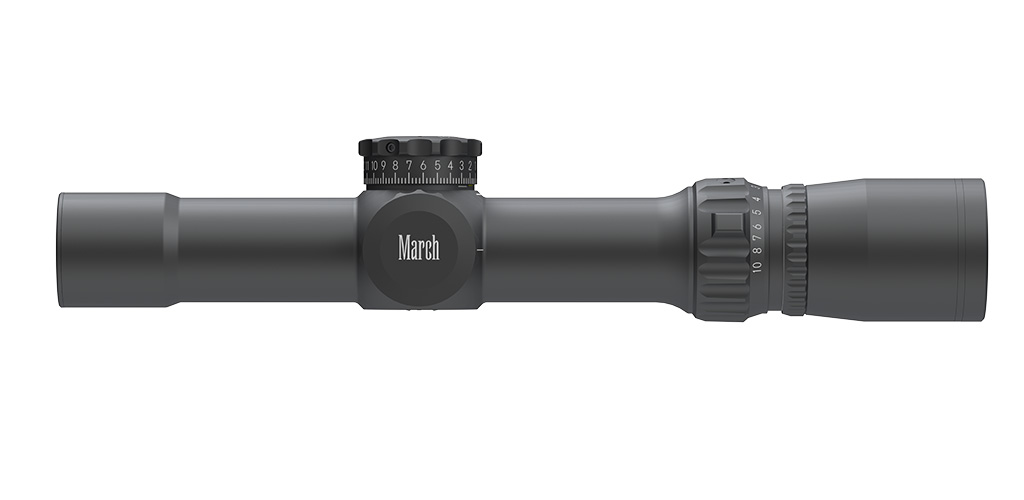

D10V24T (MOA, Tactical)
Tactical Model (Non illuminated)
March Compact 1-10x24
The most compact in March SFP reticle scopes and it covers a wide range of tactical and hunting situation.
・10X Zoom in SFP, MOA
・30mm diameter body
・24mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating
Dials
-
MOA Type
1/4MOA Adj.dials with 0-Set
One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 200MOA.
Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.
Technical Data
Low | High | ||
---|---|---|---|
Magnification | 1x | 10x | |
Effective Lens Diameter | 24mm | ||
Body Tube Diameter | 30mm | ||
Exit Pupil | -- |
2.4mm (0.09inch) |
|
Field of View (real) | degree | 20.0° | 2.0° |
ft/100yd | 105.8ft | 10.5ft | |
m/100m | 35.27m | 3.49m | |
Eye Relief | 86-98mm (3.39-3.86inch) |
86-96mm (3.39-3.78inch) |
|
1 Click Adjustment | 1/4MOA | ||
Elevation Travel | 200MOA | ||
Windage Travel | 200MOA | ||
Focus Distance | 10yd - infinity | ||
Reticle | Di-plex | ||
In the box | Flip Caps (Objective and Eyepiece) Lens Cloth Fast Lever Hex wrench |
||
Scope Size | A | 262mm (10.31inch) | |
B | 135mm (5.31inch) | ||
C | 33mm (1.3inch) | ||
D | 41mm (1.61inch) | ||
E | 35mm (1.38inch) | ||
F | 92mm (3.62inch) | ||
G | 49mm (1.93inch) | ||
H | 48mm (1.89inch) | ||
Weight | 505g (17.81oz) |
