Scopes

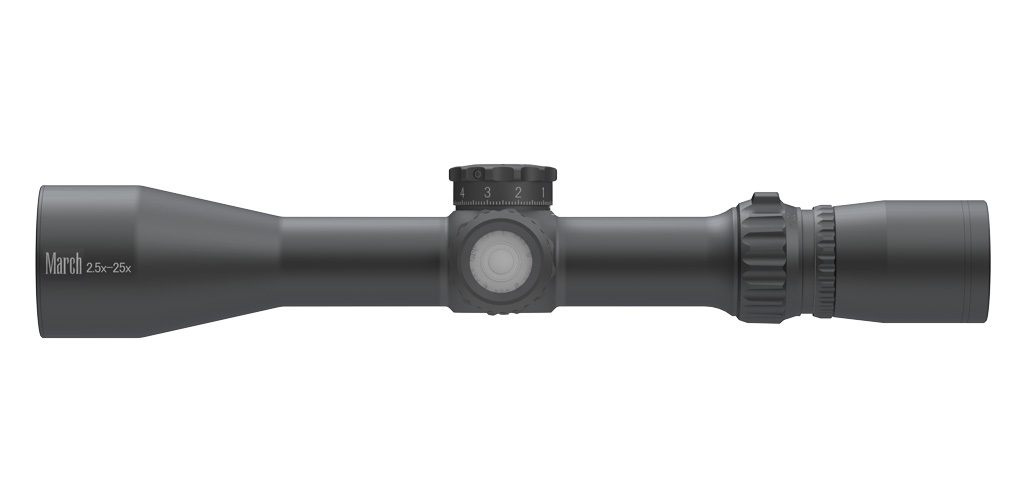

D25V42TIML (MIL, Tactical, Illumi)

Dials

MIL Type

0.1MIL Adj.dials with 0-Set
One turn of both adjustment dials is 10MIL and one click is 0.1MIL.
Elevation and windage axes each has a total adjustment range of 28MIL.

Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.

Reticles

•

  MML

  Millradian reticle with the central crosshair and the heavy posts.
  Vertical and horizontal hash marks placed in 0.5MIL (at 10x) increments.



  × CLOSE

•

  FD-1

  Flash-Dot Reticle
  Day bright fiber dot reticle perfect for fast target acquisition. Only the dot is illuminated red and nothing else would be illuminated. The dot size is 0.1MIL at 10x. Thin cross lines are 0.1MIL and the thick cross lines are 0.25MIL.



  × CLOSE

•

  FD-2

  Flash-Dot Reticle
  Day bright fiber dot reticle perfect for fast target acquisition.



  × CLOSE

Technical Data

		Low	High
Magnification		2.5x	25x
Effective Lens Diameter		42mm
Body Tube Diameter		30mm
Exit Pupil		--	1.68mm (0.07inch)
Field of View (real)	degree	8.0°	0.8°
	ft/100yd	42.0ft	4.2ft
	m/100m	13.99m	1.40m
Eye Relief		85-100mm (3.35-3.94inch)	89-96mm (3.5-3.78inch)
1 Click Adjustment		0.1MIL
Elevation Travel		28MIL
Windage Travel		28MIL
Focus Distance		10yd - infinity
Reticle		MML FD-1 FD-2
In the box		Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk
Scope Size	A	314mm (12.36inch)
	B	139mm (5.47inch)
	C	51mm (2.01inch)
	D	41mm (1.61inch)
	E	81mm (3.19inch)
	F	94mm (3.7inch)
	G	53mm (2.09inch)
	H	48mm (1.89inch)
Weight		625g (22.05oz)
