D4.5V24TM (Non illuminated)
Tactical Model

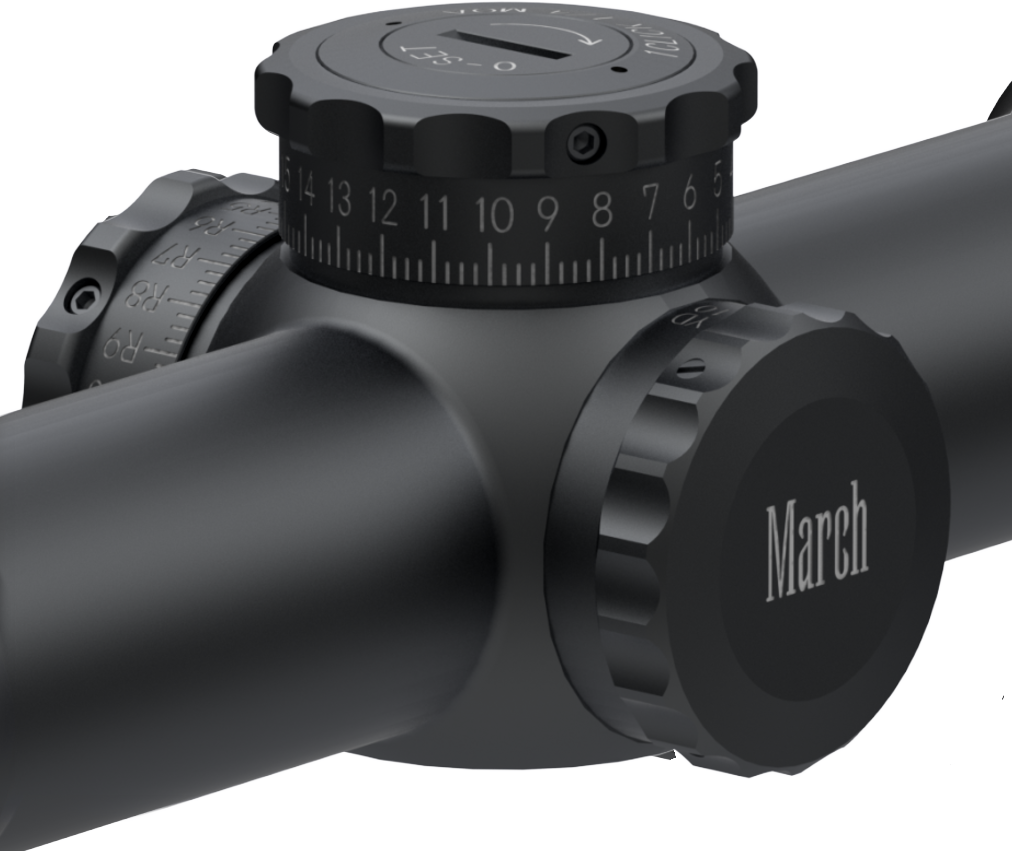

March Compact 1-4.5x24
・4.5X Zoom in SFP
・30mm diameter body
・24mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
Exit pupil 16mm at 1x. 1x-4.5x24mm scope designed for Service Rifle competition and tactical applications. This scope should set the standard for AR-friendly 4.5x optics. This compact (500g (17.64oz)) variable-power scope offers ideal eye relief for AR-type rifles, along with plenty of windage and elevation travel. Side focus dial lets you see the target clearly from 10 yards to Infinity at all power settings.
Dials
-
-
1/4 MOA Type
1 Click Adjustment: 1/4 MOA (0.26in at 100yds)
25 MOA turret revolution (10.47in at 100yds)
Elevation Travel: 200 MOA
Windage Travel: 200 MOA
Technical Data
Low | High | ||
---|---|---|---|
Magnification | 1x | 4.5x | |
Effective Lens Diameter | 24mm | ||
Body Tube Diameter | 30mm | ||
Exit Pupil | 16.0mm (0.63inch) |
5.33mm (0.21inch) |
|
Field of View (real) | degree | 19.0° | 4.22° |
ft/100yd | 100.4ft | 22.1ft | |
m/100m | 33.47m | 7.37m | |
Eye Relief | 73-103mm (2.87-4.06inch) |
73-100mm (2.87-3.94inch) |
|
1 Click Adjustment | 1/4MOA | ||
Elevation Travel | 200MOA | ||
Windage Travel | 200MOA | ||
Focus Distance | 10yd - infinity | ||
Reticle | MTR-D2 (non-illuminated only) MTR-5 (non-illuminated only) MTR-D3 (non-illuminated only) |
||
In the box | Flip Caps (Objective and Eyepiece) Lens Cloth Fast Lever Hex wrench |
||
Scope Size | A | 260mm (10.24inch) | |
![]() |
B | 131mm (5.16inch) | |
C | 33mm (1.3inch) | ||
D | 41mm (1.61inch) | ||
E | 35mm (1.38inch) | ||
F | 94mm (3.7inch) | ||
G | 49mm (1.93inch) | ||
H | 46mm (1.81inch) | ||
Weight | 500g (17.64oz) |
