Has eight magnification ratios, including the highest magnification ratio in the first focal plane (FFP) configuration rifle scope made to date. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration. This scope was designed to eliminate optical aberration without compromise, utilizing high-end extra-low dispersion (ED) lenses.
- 1x-10x24mm Shorty (34mm tube)
- D10SV24FDIMLX (Dual)
- 1.5x-15x42mm (34mm tube)
- D15V42FDIMLX (Dual)
- 4.5x-28x52mm (High Master Wide Angle)
- 5x-42x56mm (High Master Wide Angle)

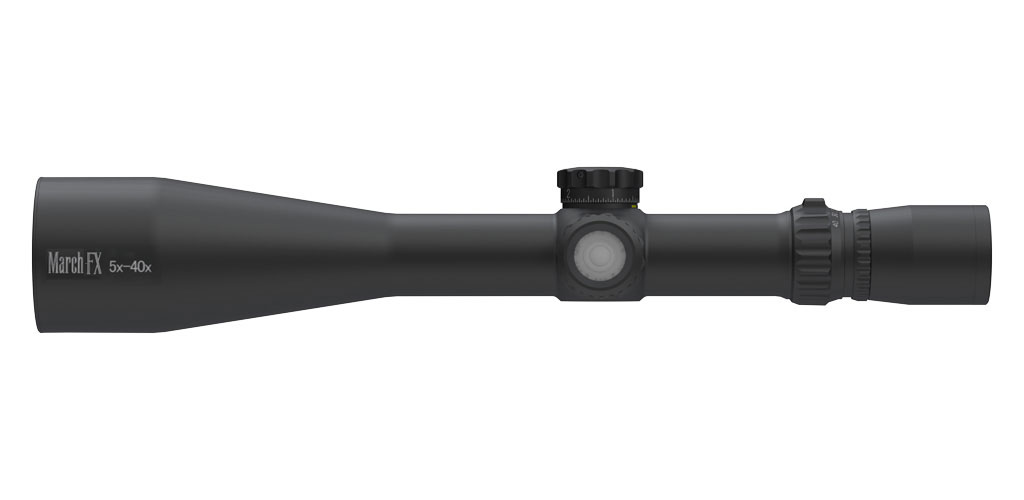

Tactical Model (Illuminated)
・8X Zoom in FFP
・34mm diameter body
・56mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
First Focal Plane Reticle Scope (FFP)A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.
The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged. This function is very effective in the dusk or when aiming at a dark target.
0.05 MIL Type

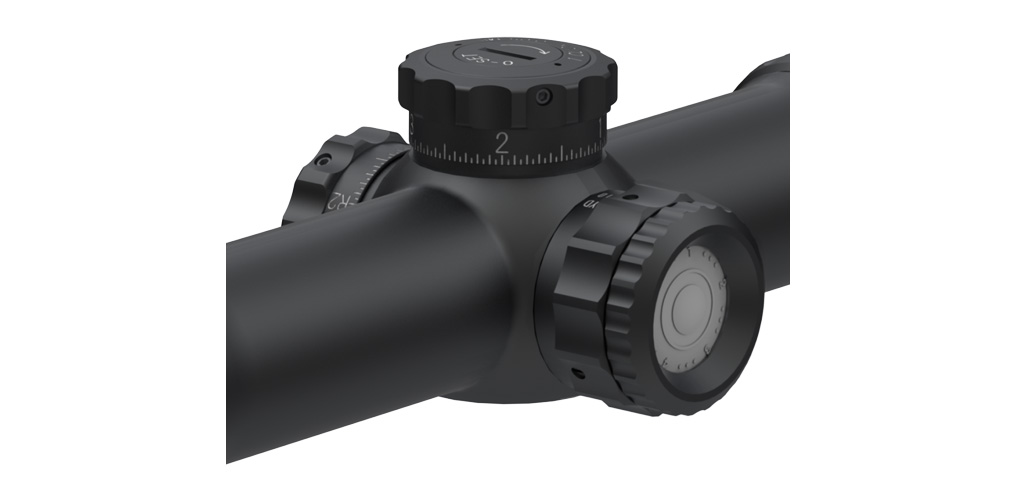

One turn of both adjustment dials is 5MIL and one click value is 0.05MIL.
0.05MIL Adj.dials with 0-Set
|Effective Lens Diameter||56mm|
|Body Tube Diameter||34mm|
|Field of View (real)||degree||4.0°||0.5°|
|1 Click Adjustment||0.05MIL|
|Focus Distance||10yd - infinity|
|In the box||Flip Caps (Objective and Eyepiece)
|Scope Size||A||389mm (15.32inch)|
