March-FX (FFP, 34mm tube)
- 1x-10x24mm Shorty FFP (34mm tube)
- D10SV24FDIMLX (Dual, MIL, Tactical, Illumi, Shuriken lock)
- D10SV24FIMLX (MIL, Tactical, Illumi, Shuriken lock)
- D10SV24FDIMLN34 (Dual, MIL, Normal, Illumi)
- D10SV24FIMLN34 (MIL, Normal, Illumi)
- 1.5x-15x42mm FFP (34mm tube)
- D15V42FDIMLX (Dual, MIL, Tactical, Illumi, Shuriken lock)
- D15V42FIMLX (MIL, Tactical, Illumi, Shuriken lock)
- D15V42FDIMLN (Dual, MIL, Normal, Illumi)
- D15V42FIMLN (MIL, Normal, Illumi)
- 4.5x-28x52mm FFP (High Master Wide Angle)
- D28HV52WFIMLX (MIL, Tactical, Illumi, Shuriken lock)
- D28HV52WFMLX (MIL, Tactical, Shuriken lock)
- D28HV52WFIMAX (MOA, Tactical, Illumi, Shuriken lock)
- D28HV52WFIML (MIL, Tactical, Illumi)
- D28HV52WFML (MIL, Tactical)
- 5x-42x56mm FFP (High Master Wide Angle)
- D42HV56WFIMLX-G2 (MIL, Tactical, Illumi, Shuriken lock)
- D42HV56WFML-G2 (MIL, Tactical, Writable turrets)
- D42HV56WFIMAX-G2 (MOA, Tactical, Illumi, Shuriken lock)
- 5x-40x56mm FFP
- D40V56FIML10-G2 (MIL, Tactical, Illumi, 0.1MIL adj, Lock, Genll)
- D40V56FML10-G2 (MIL, Tactical, 0.1MIL adj, Lock, Genll)
- D40V56FIML-G2 (MIL, Tactical, Illumi, 0.05MIL adj, Lock, Genll)
- D40V56FML-G2 (MIL, Tactical, 0.05MIL adj, Lock, Genll)
- D40V56FIMA8-G2 (MOA, Tactical, Illumi, 1/8MOA adj, Lock, Genll)
- D40V56FMA8-G2 (MOA, Tactical, 1/8MOA adj, Lock, Genll)
D40V56FML-G2 (MIL, Tactical, 0.05MIL adj, Lock, Genll)
Tactical Model (Non illuminated)

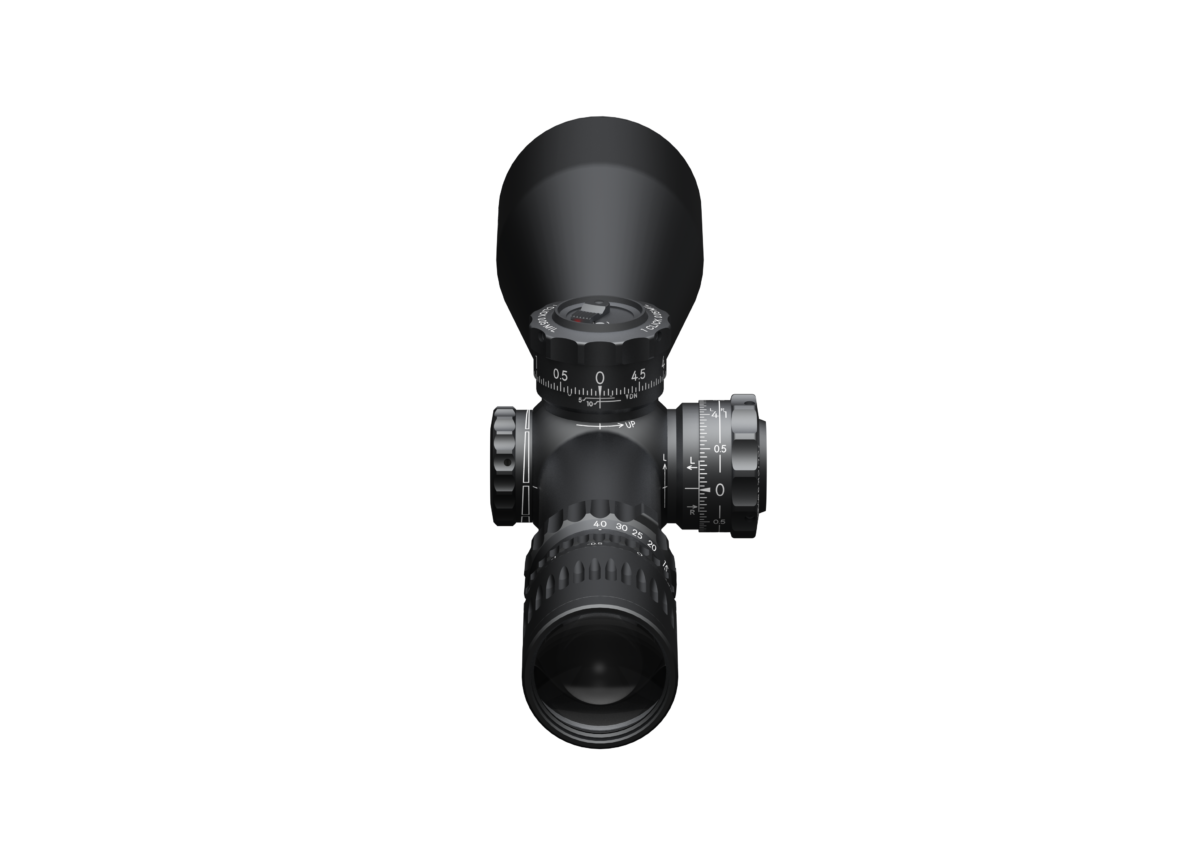

March-FX 5-40x56 Genll
Generation ll of a hot seller and all time favorite 5-40x56 Scope with precise 0.05MIL click adjustment. 5-40x56Genll is an ultimate scope for serious competition shooters, enthusiasts and hunters who demand the utmost in optical/mechanical performance.
・8X Zoom in FFP
・34mm diameter body
・56mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
Added features in 5-40x56 Genll from the original 5-40x56 are;
・Lockable Elevation and Windage turrets
・Fast focus eyepiece
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.Oversized dials for elevation, windage, and side focus for easy adjustment. The elevation dial has a 0-set function.
Dials
-
0.05 MIL Type
0.05MIL Adj.dials with 0-Set
One turn of both adjustment dials is 5MIL and one click value is 0.05MIL.
Technical Data
Low | High | ||
---|---|---|---|
Magnification | 5x | 40x | |
Effective Lens Diameter | 56mm | ||
Body Tube Diameter | 34mm | ||
Exit Pupil | -- |
1.4mm (0.06inch) |
|
Field of View (real) | degree | 4.0° | 0.5° |
ft/100yd | 21.0ft | 2.6ft | |
m/100m | 6.98m | 0.87m | |
Eye Relief | 96-100mm (3.78-3.94inch) |
92-98mm (3.62-3.86inch) |
|
1 Click Adjustment | 0.05MIL | ||
Elevation Travel | 24MIL | ||
Windage Travel | 12MIL | ||
Focus Distance | 10yd - infinity | ||
Reticle | FML-1 |
||
In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast lever MD disk Hex wrench |
||
Scope Size | A | 389mm (15.32inch) | |
B | 155mm (6.1inch) | ||
C | 64mm (2.52inch) | ||
D | 41mm (1.61inch) | ||
E | 146mm (5.75inch) | ||
F | 88mm (3.46inch) | ||
G | 66mm (2.6inch) | ||
H | 52mm (2.05inch) | ||
Weight | 900g (31.75oz) |
